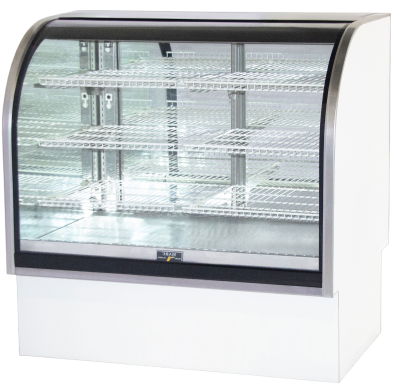

BCR Series, High Volume Curved Glass Refrigerated Bakery Display Case BCD Series, High Volume Curved Glass Dry Bakery Display Case

Features :

  • Curved Insulated Safety glass (non insulated on BCD Models)
  • Full length fluoresent lighting installed at top of case and under each shelf
  • Three rows of heavy duty white coated wire shelves able to accommodate standard 18″ x 26″ sheet pans
  • Electrical cord and plug
  • Air cooled low velocity refrigeration system mounted on easy removable slide in and out base on BCR Models
  • Mirror interior ends Mirror interior sliding doors, white on exterior doors
  • Mirror stainless steel front grill on BCR Models
  • Heavy duty aluminum mill finish main deck on BCR Models
  • Condensate evaporator eliminates need for drain on BCR Models
MODEL HEIGHT LENGTH DEPTH Row of Shelves Pan Capacity 18"x26" amps Voltage H.P. Est. Weight
BCR-48 48" 48 1/2" 35 1/4" 3 8 full
4 half
12 amps 120/60/1 1/3 665 lbs.
BCD-48 48" 48 1/2" 35 1/4" 3 8 full
4 half
3 amps 120/60/1 470 lbs.
BCR-59 59" 48 1/2" 35 1/4" 3 12 16 amps 120/60/1 1/2 780 lbs.
BCR-77 77" 48 1/2" 35 1/4" 3 16 16 amps 120/60/1 1/2 970 lbs.
BCD-77 77" 48 1/2" 35 1/4" 3 16 3 amps 120/60/1 840 lbs.

NOTE: Designed for use in locations with air conditioning where temperature and relative humidity do not exceed 75% F and 55% RH. (Excessive condensation & loss of temperature may occur).

You May Also Like

MFC Series

MFC Series, Remote & Self-Contained, Double…

View Details

WBCH Series

WBCH Series, Curved Glass Electric Hot Food…

View Details

SQBCR/SQBCD Series

SQBCR Series, High Volume Refrigerated Bakery…

View Details

LUBCR/LUBCD Series

LUBCR Series, Lift Up High Volume…

View Details

SPL Series

1/2 Refrigerated Curved Glass Bakery Case…

View Details

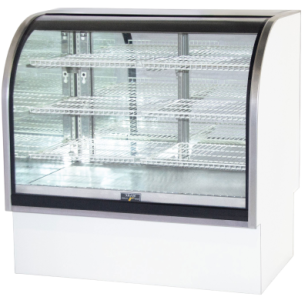

BCR Series
