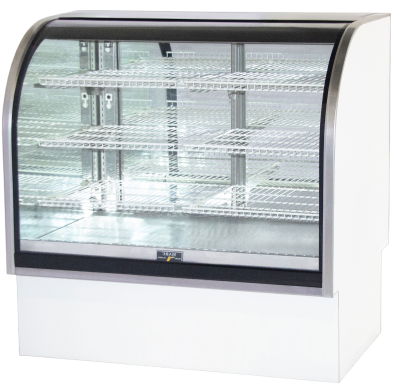

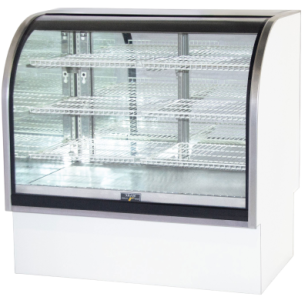

BCR Series, High Volume Curved Glass Refrigerated Bakery Display Case BCD Series, High Volume Curved Glass Dry Bakery Display Case

Features :

Curved Insulated Safety glass (non insulated on BCD Models)
Full length fluoresent lighting installed at top of case and under each shelf
Three rows of heavy duty white coated wire shelves able to accommodate standard 18″ x 26″ sheet pans
Electrical cord and plug
Air cooled low velocity refrigeration system mounted on easy removable slide in and out base on BCR Models
Mirror interior ends Mirror interior sliding doors, white on exterior doors
Mirror stainless steel front grill on BCR Models
Heavy duty aluminum mill finish main deck on BCR Models
Condensate evaporator eliminates need for drain on BCR Models

Download Catalog Request for Quote Color Options

Marc's BCR & BC Series, Curved Glass Bakery Display Cases

MODEL	LENGTH	HEIGHT	DEPTH	Row of Shelves	Pan Capacity 18"x26"	amps	Voltage	H.P.	Est. Weight
BCR-48	48"	48 1/2"	35 1/4"	3	8 full 4 half	12 amps	120/60/1	1/3	665 lbs.
BCD-48	48"	48 1/2"	35 1/4"	3	8 full 4 half	3 amps	120/60/1	—	470 lbs.
BCR-59	59"	48 1/2"	35 1/4"	3	12	16 amps	120/60/1	1/2	780 lbs.
BCR-77	77"	48 1/2"	35 1/4"	3	16	16 amps	120/60/1	1/2	970 lbs.
BCD-77	77"	48 1/2"	35 1/4"	3	16	3 amps	120/60/1	—	840 lbs.

NOTE: Designed for use in locations with air conditioning where temperature and relative humidity do not exceed 75% F and 55% RH. (Excessive condensation & loss of temperature may occur).
